Start with sag, then use rebound and compression to finish the job
- Sag sets your ride height and traction baseline.
- Rebound controls how quickly the fork and shock recover after a hit.
- Compression adds support, but too much of it makes the bike feel nervous and harsh.
- One change at a time is the only reliable way to tune a bike.
- If the bike still feels inconsistent after a sensible setup, service or spring-rate changes may be the real fix.
What suspension setup actually changes on the trail
I think of suspension as a traction and control system first, and a comfort system second. When a bike is set up well, the wheels stay in contact with the ground longer, braking feels calmer, and your body does less work to stay balanced. When it is off, the ride can feel vague, tiring, or strangely nervous even if the bike looks fine at a glance.
That matters especially on UK terrain, where wet roots, slick rock, tight corners, and short, punchy climbs punish a setup that is too soft or too firm. Too much sag can make the bike sit low and dive under braking. Too little sag can make it skitter over small bumps and lose grip exactly when you need it most.
- Grip comes from the wheel following the trail instead of bouncing off it.
- Support keeps the bike in a usable part of its travel when you brake, pump, or corner.
- Efficiency improves when the chassis is not wasting energy on extra movement.
- Confidence rises when the bike behaves the same way every time you load it up.
Once you see suspension as a balance of grip, support, and recovery, the next step becomes much clearer: set the ride height first, then tune the damping around it.
How to set sag without guessing

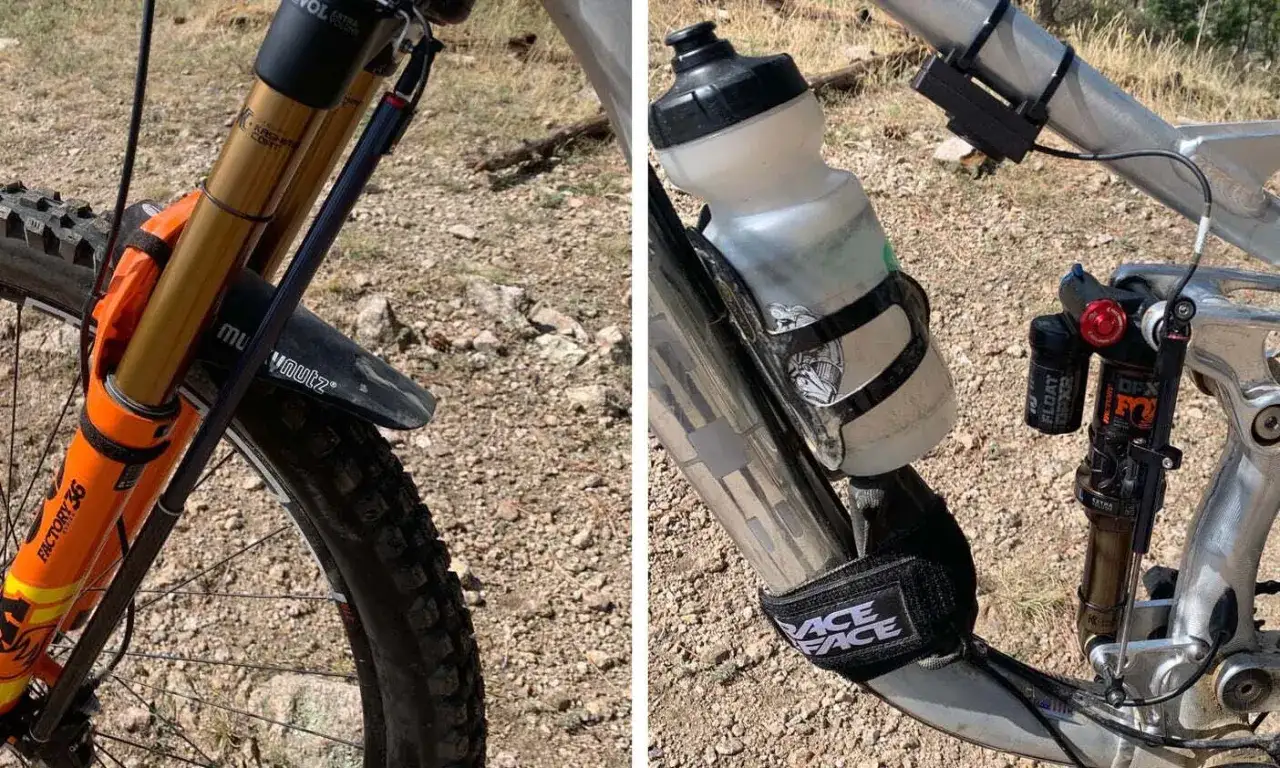

Sag is the starting point for almost everything else. It is the amount the suspension settles under your normal riding weight, and it determines where the fork and shock sit in their travel before you hit the trail. I always start here because rebound and compression mean very little if the bike is riding too high or too deep in its travel.
- Set your tyre pressures first, because a soft tyre can make suspension feel wrong before the fork or shock is even involved.
- Wear full riding kit, because a pack, water, tools, and wet-weather layers all change the real system weight.
- Slide the sag ring to the dust seal, then get into your normal riding position without bouncing the bike.
- Step off carefully and measure the distance the ring moved.
- Convert that number into a percentage of travel, then make a small adjustment and retest.
As a practical starting point, I would work around 15-20 percent sag at the fork and 25-33 percent at the rear shock. Those ranges are close to what most major suspension brands publish, but frame design matters too, so a bike-specific chart always overrides generic advice. Most shocks are still measured in psi, even if you prefer thinking in bar, so small air-pressure changes are usually the fastest way to fine-tune sag.
| What you feel | What it usually means | What I change first |
|---|---|---|
| Bike sits too deep, dives under braking, and uses travel too easily | Too much sag or too soft a spring rate | Add 3-5 psi, or move to a firmer spring |
| Front end feels nervous, traction drops on roots, and the bike rides high | Too little sag or too firm a spring rate | Remove 3-5 psi, or soften the spring |
| Ride height looks fine but the bike still feels odd | Sag is probably close enough | Move on to rebound and compression |
Once ride height is right, the next job is to control how quickly the bike returns after each hit.
Rebound and compression in plain English
These are the two adjusters that most riders overthink and underuse at the same time. I keep them simple. Rebound controls return speed. Compression controls how easily the suspension moves into its travel. If you understand those two ideas, most tuning decisions become much less mysterious.
Rebound
Rebound is how quickly the fork or shock extends after being compressed. Too fast, and the bike can feel bouncy, loose, or hard to settle through repeated hits. Too slow, and the suspension starts to pack down, which means it does not recover fully before the next bump and gradually rides lower and harsher.
I usually start from the manufacturer’s suggested setting or from the middle of the range, then fine-tune after a few minutes on the trail. A useful test is simple: if the bike feels like it kicks back at you after a hit, slow the rebound a click or two. If it sinks lower and lower through a rough section, speed it up.
Read Also: Fox 34 SL - The XC Fork You Actually Need?
Compression
Compression controls how easily the suspension moves into its travel. Low-speed compression deals with body movements such as braking, pumping, cornering, and pedalling support. That term does not mean trail speed; it refers to the speed of the damper shaft moving inside the fork or shock. High-speed compression matters more for sharp impacts, square edges, and harsh landings.
If your fork or shock has only one compression dial, treat it as a general support setting. Use it to stop excessive dive or wallow, not to make the bike feel artificially firm. My rule is simple: add compression only when the bike is doing too much unwanted movement. If grip disappears or small bumps start talking through your hands, you have gone too far.
Once the damping language makes sense, the useful part begins: applying it to the kind of trails you actually ride.
A setup routine that works on real UK trails
British riding usually asks for a bike that is supple enough for wet roots and rough, low-speed traction, but still supportive enough for short steep descents and repeated braking bumps. That is why I do not chase one perfect number. I test the bike against the terrain, then decide whether I need more support, more sensitivity, or a better balance between the two.
| Trail condition | What to prioritise | Typical direction |
|---|---|---|
| Wet roots and off-camber woodland turns | Grip and initial sensitivity | Slightly softer sag, lighter compression, free but controlled rebound |
| Rocky descents and brake-bump sections | Support and recovery | Keep sag sensible, slow rebound if the bike kicks, add a touch of support if it dives |
| Flow trails and jump lines | Pop and mid-stroke support | More mid-stroke support, but not so much that the bike stops using travel |
| Long climbs and mixed fire road sections | Pedalling balance | Enough support to stay efficient without losing traction |
My usual process is boring, but it works: I ride a short loop, make one adjustment, and ride the same loop again. Two or three minutes is enough if the loop includes a braking check, a rooty corner, a rough straight, and one harder compression. If I cannot tell what changed, I undo the last step and simplify.
I also tune the fork and shock together instead of treating them as separate jobs. If one end returns much faster than the other, or one end sits deeper than the other, the bike can feel strangely disconnected even when both halves seem acceptable on their own.
That kind of structured testing makes the next section easier to understand, because most bad setups are not subtle at all.
The mistakes that waste time
Most suspension problems are not caused by one dramatic error. They come from a handful of small, repeated mistakes that make the bike harder to read. Once those are removed, the tuning process gets much quicker.
| Mistake | What it looks like | Better move |
|---|---|---|
| Changing three settings at once | You cannot tell which change helped | Adjust one variable, then retest |
| Using compression to hide a spring-rate problem | Bike feels harsh but still blows through travel | Reset sag or spring rate first |
| Ignoring tyre pressure | Suspension gets blamed for a tyre issue | Set tyres before touching the damper |
| Chasing a faster rebound because it sounds better | Bike gets lively, then uncontrollable | Use the fastest rebound that still stays calm |
| Running too little support for your riding style | Brake dive, wallow, or frequent bottom-outs | Add spring support or a touch more compression |
The mistake I see most often is riders trying to fix the wrong spring rate with clickers. If the rider is far outside the intended range, or the frame’s leverage curve simply does not suit the terrain, damping adjustments can only do so much. At that point, you are not really tuning the bike any more; you are working around a mismatch.
That is when service, spacers, or a different spring rate start to matter more than another round of clicker changes.
When service, spacers or a different spring rate make more sense
If the bike suddenly feels sticky, noisy, or inconsistent over the course of a ride, more tuning is usually not the answer. That points to worn seals, old oil, air-can issues, or bushings with play. A fork or shock with poor consistency cannot be “dialled in” properly because the baseline behaviour is already changing underneath you.
I also start thinking about volume spacers when a rider is close to the right sag but still uses too much travel near the end of the stroke. Spacers change progression, which means they add end-stroke support without ruining small-bump sensitivity. That can be a cleaner fix than overloading the compression circuit.
If you ride harder than the stock tune was designed for, or your weight puts you near the edge of the usable air-spring range, a different spring rate is often the better solution. The bike should feel like it is working with you, not like it is being forced into shape by extra damping. Service intervals vary by model and use, so if performance has drifted, I would follow the manual before I kept turning clicks in circles.
If I were setting up a bike for mixed British riding today, I would keep the process simple: start with the manufacturer’s sag numbers, adjust rebound until the bike stops bouncing or packing, then add the smallest amount of compression needed to hold shape. That sequence gives you a bike that grips better, wastes less energy, and is easier to trust when the trail turns wet, steep, or rough.
