The current RockShox Pike oil volume is easy to misread because the fork uses separate amounts for the lower legs, the air spring, and the damper cartridge. In this guide I’m giving you the exact service volumes for the current Pike, explaining what each number is for, and showing how to add the oil without overfilling the fork or mixing up the chambers. I’ll also cover the mistakes that usually cause leaks, drag, or a fork that feels wrong on the trail.
The current Pike uses different oil amounts for each service area
- Damper-side lower leg: 30 mL of Maxima PLUSH Dynamic Suspension Lube.
- Spring-side lower leg: 15 mL of Maxima PLUSH Dynamic Suspension Lube.
- Air spring positive chamber: 3 mL of Maxima PLUSH Dynamic Suspension Lube Heavy.
- Air spring negative chamber: 1 mL of Maxima PLUSH Dynamic Suspension Lube Heavy.
- Total lower-leg service oil: 45 mL across both legs, not 45 mL in each leg.
- Older Pike forks: check the year-specific manual first, because the numbers can change by generation.
The exact oil amounts for a current Pike
According to RockShox’s current service manual, the Pike does not use one universal fill number. For the current C1/C2 generation, the lower-leg service volume is 30 mL on the damper side and 15 mL on the spring side. That is the answer most riders are after, and it is a per-leg figure, not a total for the whole fork.| Service area | Current Pike volume | Fluid | What it means in practice |
|---|---|---|---|
| Lower leg, damper side | 30 mL | Maxima PLUSH Dynamic Suspension Lube | Lubricates the bushings, seals, and internal lower-leg surfaces on the damper side. |
| Lower leg, spring side | 15 mL | Maxima PLUSH Dynamic Suspension Lube | Same job on the air-spring side, but with the Pike’s current side-specific spec. |
| Air spring positive chamber | 3 mL | Maxima PLUSH Dynamic Suspension Lube Heavy | Used inside the upper tube during a full air-spring service. |
| Air spring negative chamber | 1 mL | Maxima PLUSH Dynamic Suspension Lube Heavy | Separate from the lower-leg service, and easy to mix up if you are rushing. |
If you are only doing a standard lower-leg service, the main numbers are 30 mL and 15 mL. If you are rebuilding the air spring, the 3 mL and 1 mL figures matter as well. I would not blend those jobs together in your head, because the fork does not treat them as the same reservoir. Once you separate the numbers, the next step is understanding why each one exists.
Why the Pike uses more than one oil volume
I keep this distinction simple: volume tells you how much oil goes in, while viscosity tells you what that oil is doing. The lower-leg oil is there to keep the fork moving smoothly through the bushings and seals. The damper oil sits inside the cartridge and controls rebound and compression. The air-spring oil is part of the spring assembly, where it supports the seals and the negative chamber behaviour.
That is why you cannot just treat a Pike like a fork with one fill number. A rider who pours the same amount into every cavity will usually end up with one of three problems: a fork that feels sticky, a fork that blows oil past the seals, or a fork that feels inconsistent in the first part of the travel. When I service a Pike, I want each chamber to get the volume it was designed for, not a round number that sounds sensible in the workshop.
The other reason the numbers matter is generation. RockShox has revised the Pike platform, the damper architecture, and the service fluids over time. So if you are working on an older Pike, the current C1/C2 numbers are not something I would copy blindly. That brings us to the part that actually saves time at the bench: the cleanest way to add the oil.
How to add the oil without overfilling the fork
The safest method is boring, which is exactly what you want from suspension service. Measure the oil, inject the correct side, and do not try to “feel” the level by eye. I use a syringe every time, because a small error is enough to change how the fork starts moving off the top.
- Remove the lower legs according to the fork’s service procedure and inspect the seals while you are there.
- Hold the fork at an angle with the bottom bolt holes facing upward so the oil goes where it should.
- Measure the correct volume before you start: 30 mL for the damper side and 15 mL for the spring side.
- Inject the oil through the bottom bolt holes into the correct leg only.
- Reinstall with fresh crush washers, then torque the bottom bolts to spec.
- Cycle the fork a few times, wipe everything clean, and check for seepage around the bolt holes and wiper seals.
If you are doing a full air-spring service as well, handle that separately and keep the chamber volumes distinct. The fork feels best when every step is measured, not guessed. And once the oil is in, the next risk is not the number itself but the common errors people make while rushing the job.

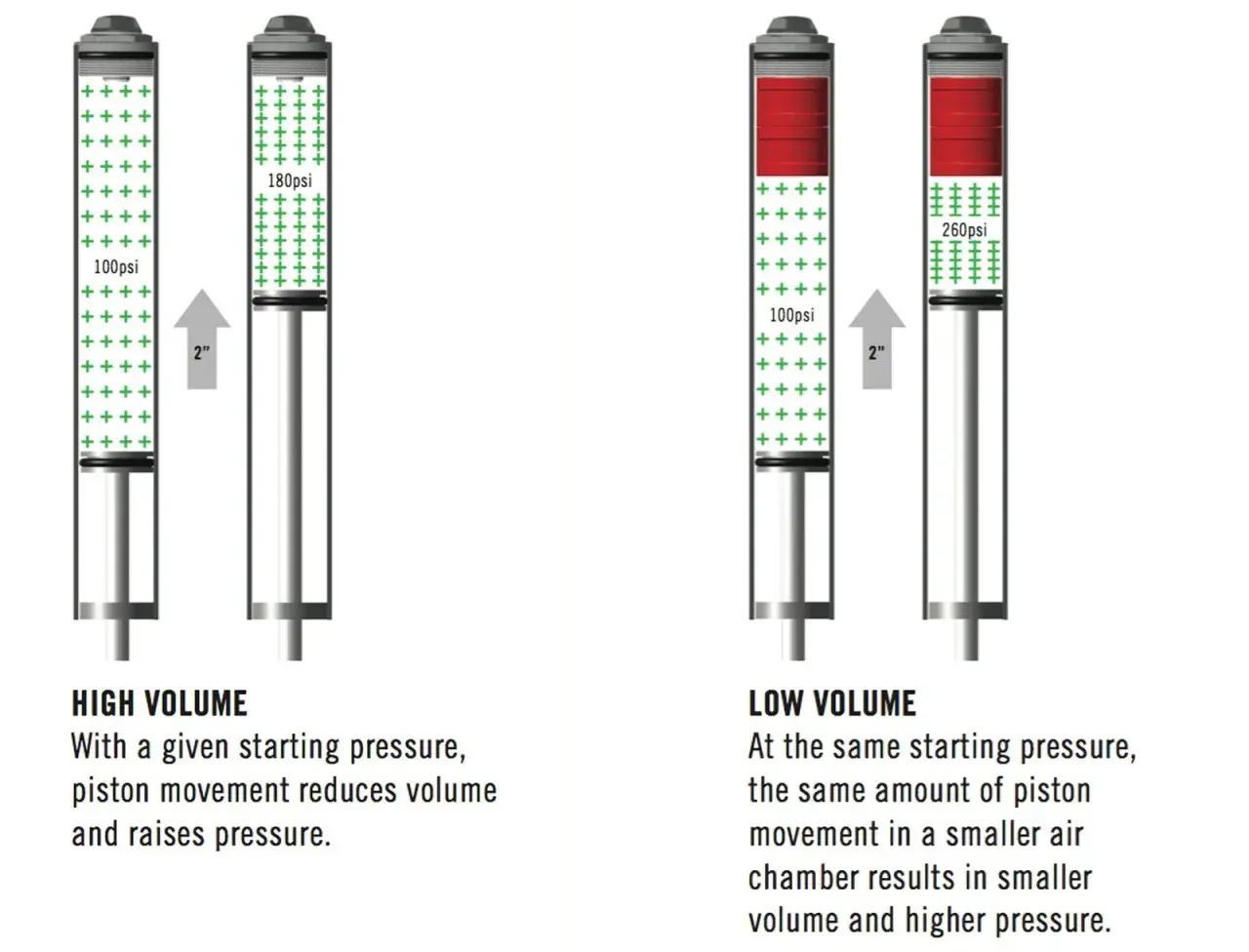

The mistakes that cause leaks, drag, and a noisy first ride
Most bad Pike services are not dramatic failures. They are small mistakes that compound the moment the fork sees dirt, heat, and repeated compression. The ones I see most often are predictable.
- Putting the same amount in both legs because it seems easier than checking the spec.
- Confusing lower-leg oil with damper oil, which are separate systems with separate jobs.
- Overfilling the fork and expecting extra oil to make it smoother. It usually does the opposite.
- Reusing crush washers that have already been compressed and are more likely to seep.
- Skipping seal and foam-ring cleaning even though dirty seals can make a fresh service feel rough almost immediately.
My rule is simple: if the volume is uncertain, stop and check before adding more. It is much easier to add 2 mL than to undo an overfilled lower leg. That caution matters even more when the fork has already seen a long wet season, because mud and contamination can hide the real problem.
What I would inspect while the lower legs are off
Once the fork is open, oil volume is only one part of the job. I would check the wear points that tell you whether the service is just maintenance or the start of a bigger repair.
- Wiper seals and foam rings for contamination, tearing, or flattening.
- Bushing play by feeling for side-to-side movement before the lower legs go back on.
- Shaft surfaces for scoring, pitting, or any scratch that could damage fresh seals.
- Crush washers and bottom bolts for deformation or damaged threads.
- Rebound adjuster and air spring hardware for smooth movement before pressurising the fork again.
If any of those parts are worn, the correct oil volume will not hide it. It may make the fork quieter for a ride or two, but the underlying issue will still be there. That is why I prefer to treat lower-leg service as a chance to catch wear early, not just a task to tick off.
The simplest rule I use before closing the Pike back up
If the fork is a current Pike C1/C2 model, I remember one thing first: 30 mL on the damper side and 15 mL on the spring side for lower-leg lubrication, with the air spring handled separately at 3 mL and 1 mL. If your Pike is older than that, or you are working on a fork with a different damper, I would not trust a generic forum answer. Check the year-specific manual and match the service step to the exact chassis in front of you.
For UK riding, I would also shorten the service interval a bit if the fork sees a lot of winter grit, mud, or damp trail spray. That is where a Pike starts to lose its smoothness first, not on a dry summer lap. Get the volume right, keep the fluids separate, and the fork will usually reward you with a clean, controlled feel instead of a vague one.
