The RockShox Revelation RC sits in an interesting middle ground: light enough for XC and marathon bikes, but still capable enough to give a hardtail or older trail bike real control on rough ground. In this article I break down what the fork is, which version you might have, how to set it up properly, and when it is still worth servicing instead of replacing.
What matters most if you are considering this fork
- Later RC versions use a 35 mm chassis, DebonAir spring and Motion Control damping.
- Travel, wheel size and axle standards vary by generation, so the serial number matters before you buy parts.
- For UK conditions, correct sag, sensible rebound and regular lower-leg services make the biggest difference.
- It suits XC, marathon and light trail riding better than aggressive enduro use.
- Used examples are usually better value than chasing new-old-stock unless the fork is exceptionally clean and documented.
What the Revelation RC is and where it sits today
The Revelation RC is a trail fork built around a simple idea: give riders a lighter chassis than a true enduro fork, but keep enough support and travel for real off-road riding. In RockShox naming, RC means rebound and compression adjustment, so you get a more straightforward damper layout than on premium forks with separate high- and low-speed control.
That matters because this fork was never meant to be the sharpest tool in the box. It was meant to be practical. The later RC model pages show a 35 mm chassis, DebonAir air spring, Motion Control damper, 110 to 160 mm travel, 27.5 and 29 inch wheel options, and BOOST 15x110 axle compatibility. In plain English, that is a sensible light-trail package, not a gravity fork.
I would describe the ride character as supportive and predictable rather than exotic. It can still feel very good on the trail, especially if it has been serviced and set up properly, but it does not have the polished damping feel of a newer Pike. That is not a criticism if the bike and riding style match the fork. It just means the context matters. Once you know that, the next question is which version you are actually dealing with.
Which version you have changes the answer
Not every Revelation RC feels the same, because the name covers several generations. The later A2 specification lists 27.5 and 29 inch wheel sizes, 110 to 160 mm travel, 35 mm tapered-wall aluminium upper tubes, a Motion Control damper and a DebonAir spring. Earlier Revelation RC versions can differ in chassis details, wheel compatibility and remote options, which is why I never buy one without checking the serial number first.
If you are matching the fork to a bike, these are the details I care about most:
| Detail | Why it matters | What I check |
|---|---|---|
| Wheel size | Determines frame fit and handling | 27.5 or 29, plus whether the fork was built for plus tyres |
| Axle standard | Must match the hub | 15x110 BOOST on later versions, but confirm before buying wheels |
| Travel | Affects head angle and ride height | Match the travel to the frame's approved range |
| Damper | Controls support and feel | Motion Control on the later RC model, older forks may differ |
| Chassis | Stiffness and steering precision | 35 mm legs are normal on later examples |
| Rotor clearance | Brake compatibility | Check the exact generation before ordering caliper mounts |
The reason I stress this is simple: a fork can look like a bargain and still be the wrong standard for your frame, wheelset or brake setup. Once the spec is clear, setup becomes far easier and the fork starts making sense as a part of the bike, not just as a component. That leads straight into the part most riders get wrong first, which is how to tune it for actual trails.
How to set it up for UK trails
My starting point is always the manufacturer suggestion from TrailHead or the air-pressure chart on the fork, followed by a proper test ride on a loop I know well. After pumping it up, I compress the fork a few times through roughly 25 to 30 percent of its travel so the positive and negative air chambers equalise, then I re-check pressure. That small step often fixes the strange, harsh first impression people blame on the damper.
For UK riding, I usually bias the setup slightly toward grip rather than outright firmness. As a practical starting point, I would aim for about 20 percent sag for XC riding and 25 percent for rooty light-trail use, then adjust from there. If the fork dives too much under braking, add a little pressure or a touch more compression. If it feels harsh and loses traction on wet roots, back off before you turn the front end into a pogo stick.
Use rebound to stop either pogoing or packing down
Rebound controls how fast the fork returns after a hit. If it comes back too quickly, the front wheel can feel lively in a bad way, almost like it is skipping across the trail. Slow it down 1 to 2 clicks at a time. If it returns too slowly and starts sitting lower and lower after repeated bumps, speed it up. That balance matters more on British trails than many riders expect, because repeated root and rock hits expose poor rebound settings very quickly.
Read Also: Fox 34 SL - The XC Fork You Actually Need?
Keep compression simple
With a Motion Control damper, I would not chase a heavily locked-down setup unless the bike is being used for long fireroad climbs or smoother commuting. On rougher descents, too much compression costs grip and makes the fork feel nervous. I prefer to get support from air pressure and volume reducers first, then use compression only to stop excessive dive or wallow. If the fork has a remote, use it as a climbing aid, not as a default riding mode.
When the fork is close, take one repeat lap and check the o-ring. If you are using almost no travel, the setup is too stiff. If you are smashing through travel on ordinary hits, it is too soft. That honest feedback loop is what makes a legacy fork feel sorted rather than merely serviceable.

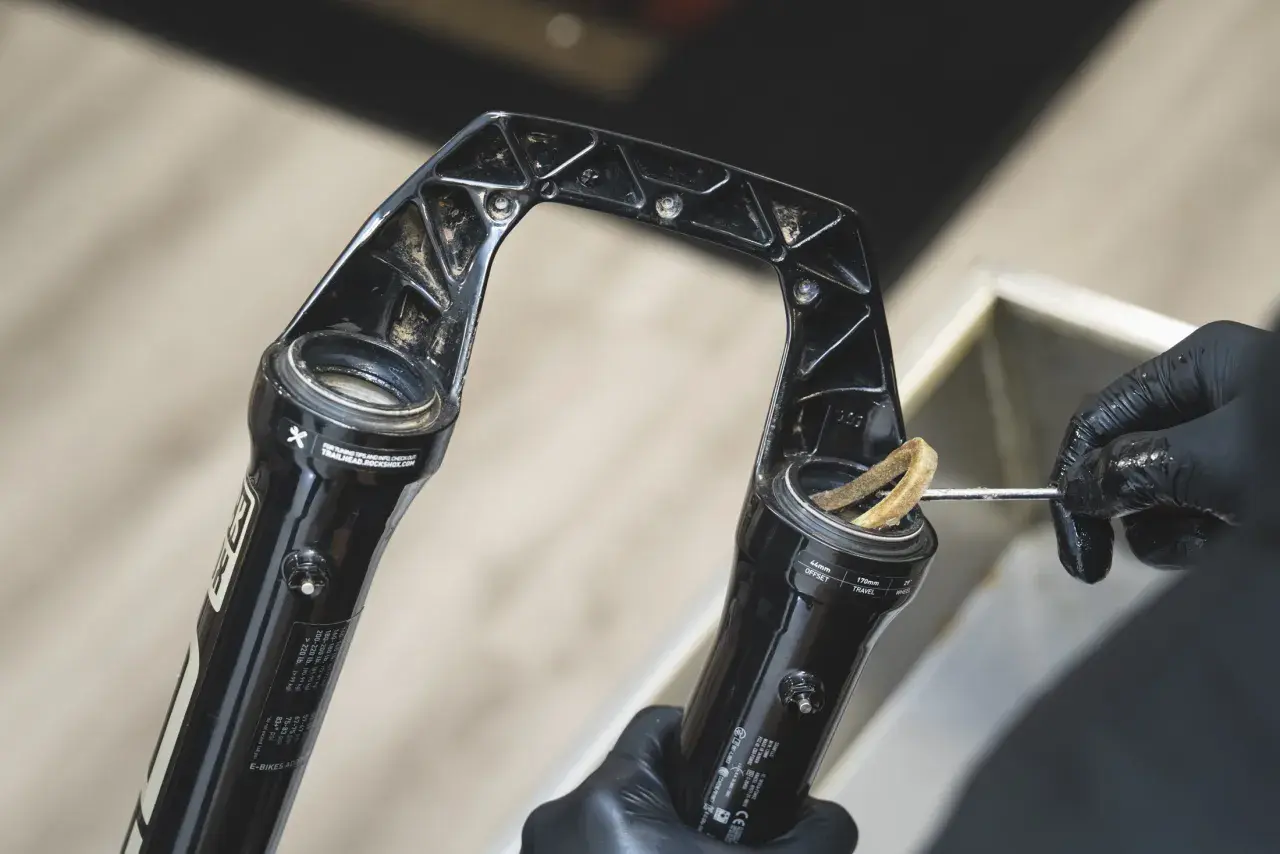

Maintenance that keeps an older fork worth riding
RockShox's current guidance is clear: every 50 hours do a lower-leg service, and every 200 hours do the lower legs, damper and spring. In the UK, I would treat that as a minimum rather than a target. Mud, water and grit shorten the useful life of seals and fluids, especially if the bike is ridden through winter.
- 50-hour service: clean and re-lube the lowers, inspect foam rings, and check wiper seals.
- 200-hour service: service the air spring and damper as well, then replace worn fluids and seals.
- Any time the fork feels sticky, noisy or inconsistent, move the service forward.
The symptoms are usually obvious once you know what to look for. Dry top-out, oil film on the stanchions, rough initial travel, or rebound that changes from ride to ride are all signs that the fork wants attention. A properly serviced Revelation can feel surprisingly composed, but a neglected one often feels worse than its spec sheet suggests.
For basic lower-leg work, a competent home mechanic can usually manage it with the right tools and fluids. Once you get into damper bleeding, air-spring internals or seal-head replacement, I would rather use a suspension specialist than guess my way through it. That is also where buying used becomes relevant, because service history matters more than paint condition.What I would inspect before buying one used
Used Revelation forks can still be strong value in 2026, but only if the fundamentals are sound. In the current UK market, clean examples commonly sit around GBP 120 to GBP 300, while especially tidy late-model or new-old-stock forks can climb closer to GBP 400. If a listing is much higher than that, I want a very good reason before I pay it.
| Check | Good sign | Red flag |
|---|---|---|
| Stanchions | Smooth, clean, no scoring | Visible wear, pits or scratches |
| Air spring | Holds pressure and moves smoothly | Loses pressure or feels inconsistent |
| Damper | Rebound feels even through the stroke | Dead spots, harshness or no compression control |
| Steerer | Enough length for your frame and spacers | Cut too short for the bike you want to build |
| Bushings | Tight, no obvious play | Knock or fore-aft movement in the lowers |
| Parts completeness | Remote, axle and adjusters present if needed | Missing hardware that is hard to replace |
If I am choosing between two similar forks, I will usually pay more for the one with a recent service record and complete parts rather than the one that only looks cleaner in photos. On a fork of this age, hidden wear is far more expensive than a small price difference. That comparison is even clearer once you line it up against newer RockShox forks.
How it stacks up against newer RockShox forks
The honest answer is that the Revelation sits between the current Reba and Pike in spirit, not in exact spec. The Reba is the lighter XC option, with a 35 mm chassis and 100 to 130 mm travel. The Pike is the more modern trail fork, also on a 35 mm chassis, but with better damping and a more confidence-inspiring feel when the terrain gets faster and rougher.
| Fork | Best for | Why it makes sense | Where it falls short |
|---|---|---|---|
| Reba | XC and lighter marathon bikes | Lighter feel, efficient on climbs, broad current support | Less composed when trails get rough and fast |
| Revelation RC | Older trail and XC bikes | Good value used, enough travel for mixed riding, simple to live with | Older chassis and damping feel compared with current forks |
| Pike | Modern trail riding | More refined damping, better stiffness, stronger all-round trail performance | Costs more and can be more fork than an older bike needs |
On British trails, that usually gives me a simple rule of thumb. If the bike is mostly doing XC loops, fireroads and moderate root webs, the Revelation still makes sense. If the riding is harder, faster and steeper, I would rather spend the money on a newer fork than try to make a legacy chassis act like one. That is the decision lens I would use in 2026.
The decision I would make in 2026
If the fork already fits the bike, holds pressure and has been serviced on schedule, I would keep it and tune it properly before I spent money chasing an upgrade. A well-sorted Revelation can still feel balanced and predictable on the kind of mixed terrain that British riders see most often.
If I were buying one used, I would only choose a clean example with the right axle standard, the right travel and at least some evidence of recent maintenance. If the price creeps into current-fork territory, I would stop and compare it with a newer Reba or Pike instead. The older fork only wins when it is cheap enough to justify its age.
That is the most useful way to think about it: not as a forgotten model, but as a capable legacy fork that still has a place when the bike, the rider and the service history line up.
