The lightweight end of Fox suspension is about more than saving grams: it is about keeping an XC bike fast, precise, and calm when the course turns rough. The term fox float sl is a little messy because Fox also uses the SL badge on a rear shock, but on the fork side the model most riders mean is the 34 SL, a race-focused front end built for modern XC and downcountry riding. I’m going to break down where it sits, how it compares with the other 34-series forks, and what setup details actually matter on real trails in the UK.
The 34 SL is the fork Fox built for modern XC without the fragility of a pure weight-weenie chassis
- Up to 130 mm of travel gives it more room than a classic XC fork.
- FOX says the new arch raises torsional stiffness by 17% over the previous XC fork.
- The fork is still light-minded, but it is aimed at riders who want more control on rough descents.
- Factory and Performance Elite builds use GRIP SL, while other trims can use GRIP or GRIP X.
- FOX’s setup guidance puts sag at 15-20% of total travel.
- FOX lists a 125-hour full service interval, which matters if you ride through wet, gritty UK conditions.
How the 34 SL sits in Fox’s XC range
I think the simplest way to read the 34 SL is as Fox’s answer to a modern XC problem: courses have become rougher, faster, and more demanding, but riders still do not want to carry unnecessary front-end weight. Fox built this fork around a full-width 34 chassis, then shaped it for XC and downcountry use rather than for pure trail abuse.
That matters because the fork is not trying to be the lightest thing Fox can make. It is trying to be light enough for racing while giving you more steering accuracy, more chassis support, and more confidence when the front wheel is loaded hard in braking bumps, roots, or off-camber turns. Fox also says the 34 SL arch increases torsional stiffness by 17% compared with the previous XC fork, which is the kind of gain you feel on the trail more than you see on the scale.
In practical terms, this is the fork I would look at for technical XC, marathon racing, and fast British downcountry bikes that still see proper descents. That naturally raises the question of how it compares with the other 34-series options.
How it compares with the 34 Step-Cast and the trail 34
If you are choosing between Fox’s lightweight forks, the real decision is not “good or bad” but “how much front-end support do I need?” I would frame it like this:
| Fork | Best for | Travel range | What stands out |
|---|---|---|---|
| 34 Step-Cast | Pure XC racing where weight is still the first priority | 100-120 mm | Fox calls it the lightest 34 ever; it is the leanest option in the family |
| 34 SL | Modern XC and downcountry riding | Up to 130 mm | More stiffness and support than the Step-Cast, with only a small weight penalty |
| 34 | Trail and all-mountain use | 130-140 mm | More descending bias, especially if your rides are rougher and faster |
The other detail I would pay attention to is braking and hardware clearance. Fox’s 34 SL part information says the 2026 chassis now accepts a 203 mm rotor, which is a useful clue about where the fork is heading: still XC-first, but with more real-world braking support than a featherweight race-only fork. By contrast, the Step-Cast remains the more minimal, weight-led choice. If your local rides are smooth and your race bike is built around climbing efficiency, that lighter fork still makes sense. If your courses punish the front wheel, the 34 SL is the more forgiving compromise.
How I’d set it up for UK XC and downcountry riding
This is the section that saves people from buying the right fork and then making it ride badly. I would start with sag, not with random pressure chasing. FOX recommends 15-20% sag for the 34 SL, and that is the range I would use before touching rebound or volume spacers.
| Travel | 15% sag | 20% sag |
|---|---|---|
| 110 mm | 17 mm | 22 mm |
| 120 mm | 18 mm | 24 mm |
| 130 mm | 20 mm | 26 mm |
FOX’s own starting-pressure chart runs from 64 psi for 54-59 kg riders up to 120 psi for 109-113 kg riders, so there is plenty of room to land on a sensible baseline. I would not obsess over the exact starting number as much as the sag result and the ride feel on the first proper descent.
- Too much pressure makes the fork sit high and skip across chatter.
- Too little pressure can feel plush at first, then dive too deeply under braking.
- Rebound too fast can make the front end kick back and lose rhythm on repeated hits.
- Rebound too slow can pack the fork down in back-to-back bumps, which is common on wet, rooty UK trails.
If I were setting one up for a British XC loop, I would aim for a slightly firmer starting point than on a smooth, dry race circuit, then open it back up only if the fork feels nervous. Wet roots and compression bumps expose bad setup quickly. They do not care what the sticker says.

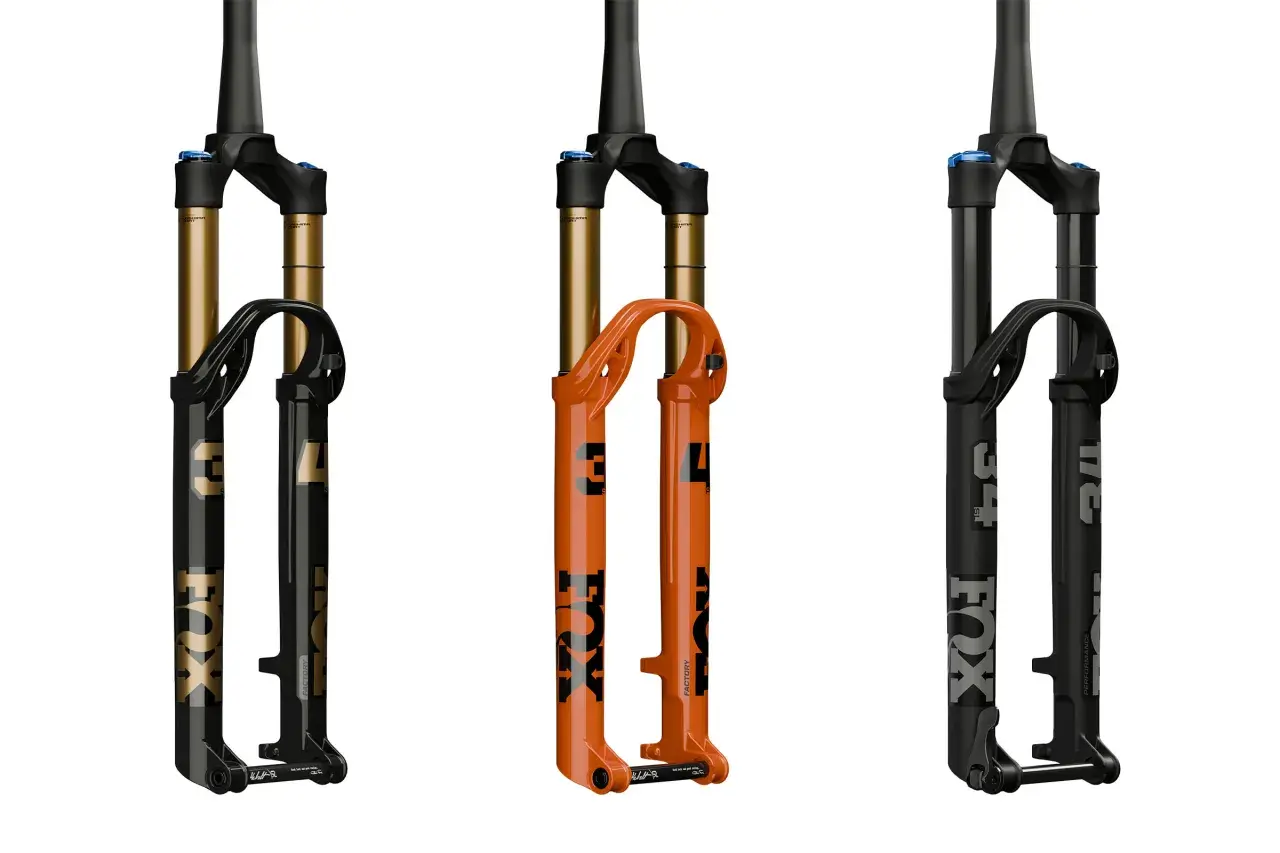

Which damper version makes sense on the bike you actually ride
Fox gives the 34 SL a few damper paths, and the right one depends on whether you care more about outright efficiency or descending support. I would not choose by price tag alone.
| Damper | What it feels like | Who I would recommend it to |
|---|---|---|
| GRIP SL | Light, efficient, and race-oriented with three compression positions | XC racers and endurance riders who want the lightest sensible fork build |
| GRIP | Straightforward and easy to live with, with solid value | Riders who want a simple fork for fast training and local loops |
| GRIP X | More descended-focused support, with a firmer climbing mode | Downcountry riders and aggressive XC riders who spend more time pointing down |
The key trade-off is simple: GRIP SL is the race choice, while GRIP X is the “I still want to push harder on the descent” choice. If your rides are short, sharp, and clock-focused, I would stay light. If you regularly ride technical laps in the Peaks, Wales, or Scottish trail centres and want more composure, I would lean toward the more supportive damper.
Who should choose it and who should step up or down
I would recommend the 34 SL to riders who want an XC fork that does not feel fragile when the trail turns rough. That includes marathon racers, fast club riders, and downcountry riders who want a sharper front end without jumping to a full trail fork. It also suits bikes that are built around efficiency first, especially when you want to keep the cockpit responsive on long climbs.
I would not put it on an aggressive trail bike and pretend that is a clever compromise. If your riding is dominated by hard hits, bike-park laps, or long steep descents, the regular 34 or even a bigger chassis makes more sense. On the other side, if every gram matters and you race smooth XC tracks almost exclusively, the 34 Step-Cast still has a place because it is the more minimal option.
The best decision usually comes from the frame, not the fork badge. If your frame is designed around 120 mm and you want a sharper race bike, the 34 SL is a very sensible middle ground. If your frame and riding style ask for more descending margin, I would choose more fork before I choose more marketing.
The details that keep it fast through a wet season
Fox lists a 125-hour full service interval for the 34 SL, and in practice I would treat that as a serious maintenance target rather than a suggestion to ignore until something feels wrong. Wet winters, grit, and pressure-washing mistakes all shorten the happy life of fork internals. If the fork starts feeling sticky, harsh, or inconsistent, the problem is often not the spring rate. It is contamination, wear, or neglected service.
For a UK rider, the useful habits are boring but effective: wipe the stanchions after muddy rides, recheck sag if you change tyres, clothing, or hydration load, and do not let rebound drift because the fork “felt fine last month”. Small changes stack up. A fork like this rewards consistency more than constant tinkering.
If I were building a fast XC bike in 2026, I would treat the 34 SL as the fork that buys control where modern courses actually need it. The Step-Cast is still the lighter specialist, and the regular 34 is the bigger hitter, but the 34 SL is the one I would choose when I want one fork to handle racing, training, and rougher British terrain without feeling overbuilt.
