The width that fits your rim and terrain usually beats the widest option
- Tyre width is nominal, not absolute, so the real size can change once it is mounted.
- Internal rim width changes the tyre profile, support, and measured width.
- For many UK XC and trail bikes, 2.35 to 2.4 in is the best all-round starting point.
- 2.5 to 2.6 in adds support and comfort, but it asks more from clearance and wheel choice.
- On wet British trails, mud clearance and tread pattern matter almost as much as width itself.
How mountain bike tyre width is measured
Tyre width sounds simple, but the number printed on the sidewall is only a reference point. A tyre marked 2.4 in, for example, is a nominal section width, not a promise that every version will measure exactly the same once inflated. The ETRTO format, such as 60-622, is more precise: the first number is the width in millimetres and the second is the bead-seat diameter of the rim.
I always treat that printed width as a starting point rather than a fixed dimension. Continental notes that the nominal width is based on a measuring rim, and the actual width changes when the tyre is mounted on a rim with a different internal width. For clincher tyres, it says the width shifts by about 0.4 mm for every 1 mm difference in rim width from the measuring rim.That is why two tyres both sold as 2.4 in can feel different on the trail. Casing shape, tread height, pressure, and rim width all change the final size and the way the bike handles. Once you understand that, the next question is not “what is the widest tyre I can fit?” but “what rim width gives that tyre the right shape and support?”
Why rim width changes the feel more than the label does

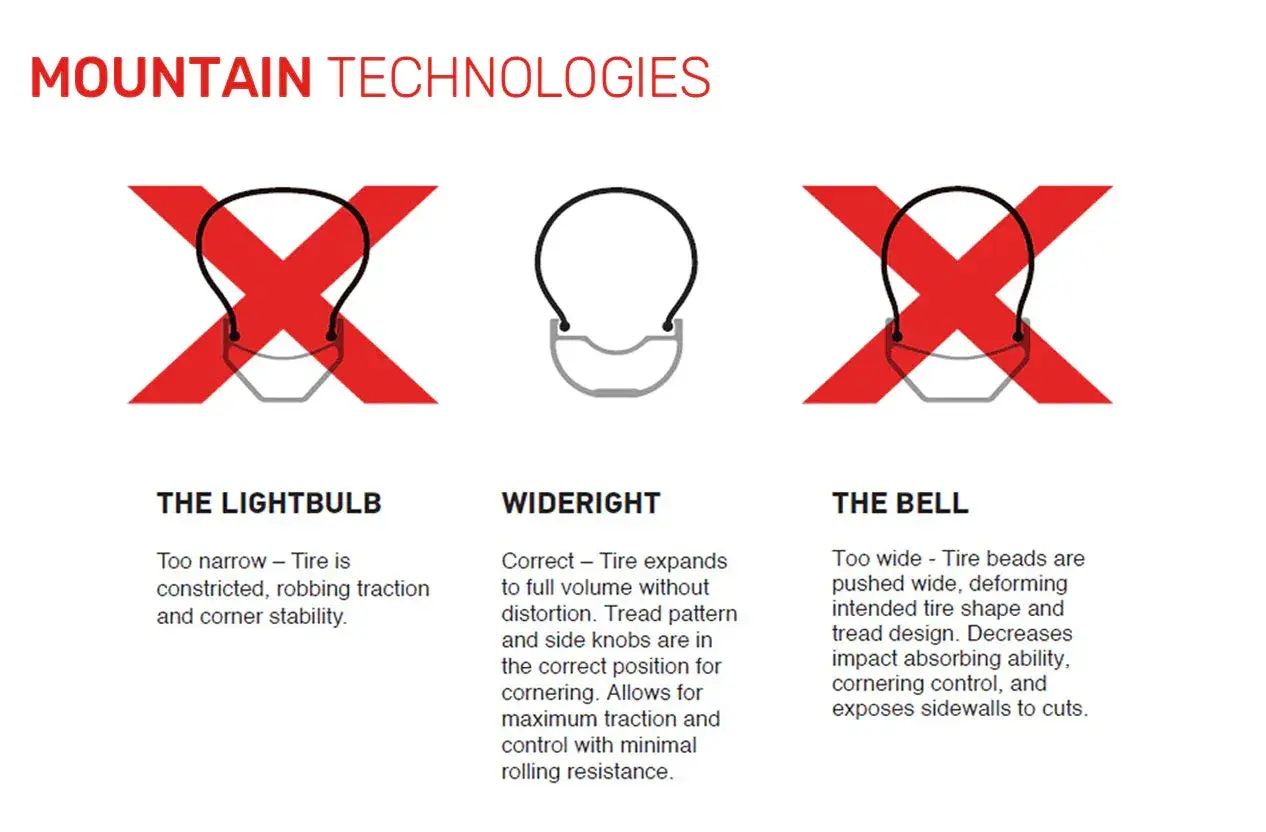

The inside width of the rim controls how the tyre sits. A narrower rim makes the casing taller and rounder, while a wider rim spreads the tyre out and gives the sidewalls more support in corners. That affects everything from cornering confidence to how low you can safely run your pressure.
Most modern MTB rims sit in the 25 to 35 mm internal range, and that is where tyre-width choices become most relevant. A 2.35 or 2.4 in tyre often feels balanced around a 25-30 mm rim, while a 2.5 in tyre usually starts to make more sense on a 30-35 mm rim. Maxxis is fairly explicit about this on its Wide Trail and trail tyre fit notes, and the practical lesson is simple: the tyre should suit the rim, not just the frame.
| Tyre width | Good starting rim range | What it tends to give you |
|---|---|---|
| 2.25 to 2.35 in | Narrower XC rims and many 25 mm rims | Quicker acceleration, lighter feel, less drag |
| 2.35 to 2.4 in | About 25 to 30 mm internal | Best all-round balance of grip, comfort, and speed |
| 2.5 in | About 30 to 35 mm internal | More support, more volume, better descending stability |
| 2.6 in | Usually 30 to 35 mm internal, sometimes wider depending on brand | Maximum comfort and grip, but clearance becomes the limiter |
That table is a rule of thumb, not a universal standard. Brand charts still matter, especially once you move into wider trail and enduro casings. The point is to avoid a mismatch that makes the tyre feel vague, over-squared, or too bulky for the bike.
What works best for XC, trail, enduro, and wet UK rides
The same width does not suit every rider or every trail. A fast XC bike on dry singletrack has very different needs from a trail bike in a wet British winter. I look at the tyre as part of a system: terrain, frame clearance, rim width, and the amount of support the casing provides.
| Riding style | Practical starting width | Why it works | Main trade-off |
|---|---|---|---|
| XC race and marathon | 2.2 to 2.35 in | Lower rotating weight and a lively feel on firm ground | Less margin on rocks, roots, and rough descents |
| General UK trail riding | 2.35 to 2.4 in | Strong balance of grip, speed, and comfort on mixed terrain | Not the lightest or fastest-rolling option |
| Aggressive trail and enduro | 2.4 to 2.5 in | Better support in corners and more confidence on rough sections | More weight and slightly slower acceleration |
| Wet, muddy winter riding | Width alone is not the answer | Clearance and an open tread pattern matter more than chasing a number | Too little space means mud packing and constant rubbing |
For most UK riders, 2.35 to 2.4 in is the most sensible middle ground. It gives enough volume to smooth out roots, stones, and brake bumps without making the bike feel sluggish on flatter trail-centre loops. If I were building one bike to do almost everything, that is where I would start.
Winter changes the calculation a bit. On greasy roots, soft ground, and sticky mud, tread pattern and sidewall support can matter more than another 0.1 in of width. If the frame is tight, I would rather run a slightly narrower tyre that clears properly than force in a bigger tyre that clogs and loses room for mud.
How to choose the right width for your bike without guessing
The cleanest way to choose width is to work from the bike outward. I start with clearance, then rim width, then pressure, and only then decide whether I want more grip or more speed. That keeps the decision practical instead of emotional.
- Check frame and fork clearance first. Maxxis recommends at least 6 mm of clearance between the tyre and the frame or fork, and in muddy UK conditions I would want more, not less.
- Read the rim’s internal width. Do not use the external width printed on the rim or wheel listing. The inner width is the number that changes tyre shape and support.
- Match the width to the job. If the bike is a fast XC machine, a 2.25 to 2.35 in tyre may make more sense than a bigger option. If the bike is for rougher trail riding, 2.4 or 2.5 in will usually feel more composed.
- Think about front and rear separately. A slightly wider front tyre often gives more cornering confidence, while a slightly narrower rear can keep acceleration and climbing feeling sharper.
- Plan around pressure and casing. Wider tyres usually let you lower pressure, but only if the casing supports the load. A light casing at too low a pressure can feel vague or squirmy.
A practical example: on a modern trail bike with a 29 mm internal rim, I would be comfortable starting with 2.4 in front and rear for mixed UK riding. On a wider 30 to 35 mm rim, a 2.5 in front and 2.4 or 2.5 in rear starts to make more sense if the frame has room. That is the kind of pairing that feels deliberate instead of random.
Mistakes that make tyre width feel wrong
Most bad tyre-width experiences come from setup mistakes, not from the width itself. I see the same problems over and over:
- Chasing the widest tyre available. Bigger is not automatically better if the frame is tight or the rim is too narrow for it.
- Ignoring casing construction. A stronger casing can improve control more than an extra 2 mm of width.
- Running the same pressure after a width change. Wider tyres generally need a different pressure to work properly.
- Forgetting mud and suspension movement. Clearance that looks fine in the stand can disappear when the bike is loaded or fully compressed.
- Assuming the rear and front need the same setup. The rear tyre sees more abuse, but the front tyre matters more for steering and confidence.
My honest view is that width gets too much credit when the real issue is usually pressure, casing, or tread choice. A well-matched 2.35 in tyre on the right rim will often outperform a poorly chosen 2.6 in tyre on the wrong wheel. Once you stop treating width as a standalone answer, the setup starts making a lot more sense.
The starting point I’d use for most UK riders in 2026
If you want one clean answer, I would start most UK XC and trail riders on 2.35 to 2.4 in tyres, ideally on a rim in the 25-30 mm internal range. That gives enough support for roots, rocks, and wet corners without turning the bike into a drag machine. If the bike is more aggressive or the rim is wider, moving to 2.5 in is a sensible next step.
- Choose 2.35 to 2.4 in if you want one setup that works on most rides.
- Choose 2.5 in if you care more about descending confidence and support than outright speed.
- Stay narrower if your frame clearance is tight or your trails are smoother and faster.
- Re-check pressure after any width change, because the tyre is part of the suspension system.
My rule is simple: pick the width your rim and frame can support cleanly, then tune pressure and tread before chasing another size. That is usually where the real performance gain sits.
