The mountain bike rim width you choose affects how a tyre sits, how much support it gets at low pressure, and how confidently the bike corners. I’m focusing here on the measurement itself, how to read it on a rim, and how to match it to the tyres and riding style that actually make sense. That matters because a few millimetres can change grip, pressure, and handling more than many riders expect.
The numbers that matter before you choose a rim
- Internal width is the figure that matters for tyre fit; external width is mostly about overall rim size and clearance.
- Most modern MTB rims sit roughly between 25 and 35 mm internally, with wider options used for plus-size and very aggressive builds.
- A 2 mm change in rim width usually shifts tyre section width by about 1 mm.
- Wider rims support the sidewalls better, but they also add weight and can make the tyre feel less rounded.
- For a versatile UK trail bike, I usually start around 28–30 mm internal width before going wider.
What rim width actually means on a mountain bike
When I talk about rim width, I mean the internal width: the distance across the inside of the rim where the tyre actually seats. WTB describes that as the narrowest point between the bead hooks, and the ETRTO code on the rim uses the first two digits to identify that width. That is the number worth paying attention to, not the outside-to-outside measurement you can see at a glance.
It also helps to separate width from wheel diameter. A 27.5in and a 29in wheel can both use the same internal width; the size of the wheel and the width of the rim are two different decisions. Once you get that distinction clear, the rest of the setup becomes much easier to judge.
Why the number changes grip, pressure, and handling
Rim width changes the shape of the tyre casing. On a narrower rim, the same tyre tends to sit rounder and a little taller; on a wider rim, it sits flatter and gets more sidewall support. DT Swiss notes that this directly affects tyre support, the risk of burping in tubeless setups, and how low you can comfortably run pressure.
That support is the real reason people chase wider rims. More support usually means more confidence in corners, a steadier feel on rough ground, and less of that vague squirm when you load the bike hard. The trade-off is simple enough: wider rims and wider tyres add weight, and that extra rotating, unsprung mass can dull acceleration and make the bike feel less lively. I would rather have enough support than chase width for its own sake, but I rarely want more width than the tyre can use well.
How I measure it correctly
If I am checking an existing wheel, I start by measuring the inside of the rim with calipers. A ruler can work in a pinch, but a caliper gives a cleaner result. Measure the narrowest point where the tyre seats, not the external lip of the rim, because the outside width does not tell you how the tyre will fit.
- Clean the rim first so dirt and tape do not skew the reading.
- Measure bead hook to bead hook, or the equivalent inner point on a hookless rim.
- Read the ETRTO marking if it is printed on the rim.
- Round to the nearest millimetre and treat that number as the real setup dimension.
Once you have that number, you can stop guessing and start pairing the rim to a tyre that will actually behave the way you want. That is where the useful part begins.
How I match tyre width to rim width without guessing

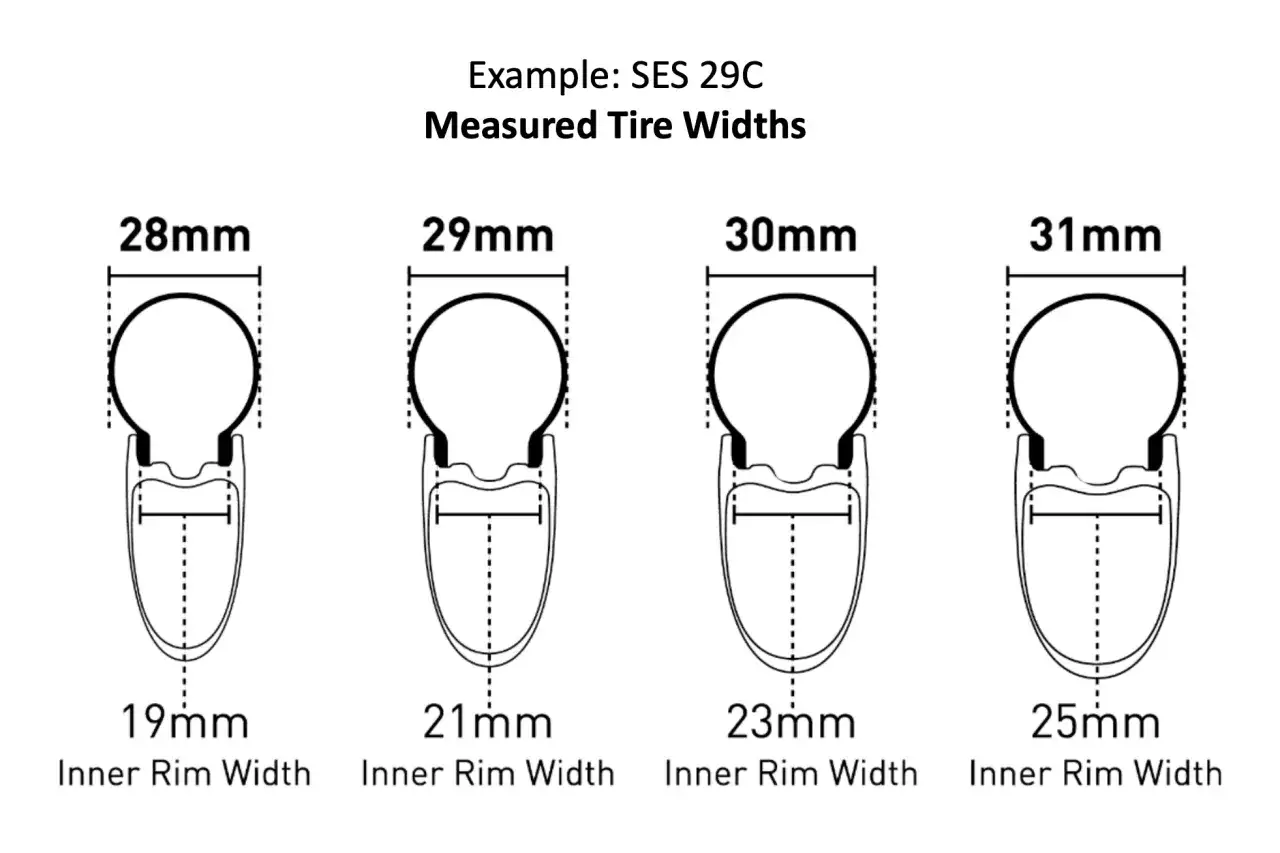

The easiest rule I rely on is WTB’s 2 mm guideline: a 2 mm change in inner rim width tends to alter tyre section width by about 1 mm. In practice, that means the tyre you buy will not measure exactly the same on every rim, and the profile will shift as the rim gets wider or narrower.
| Internal rim width | Tyre width that usually makes sense | Typical use | What I expect from it |
|---|---|---|---|
| 22–25 mm | 2.1–2.35 in | XC, fast trail, lighter builds | Rounder profile, quicker feel, less sidewall support at very low pressure |
| 25–30 mm | 2.25–2.5 in | General trail, downcountry, mixed riding | Best balance of support, traction, and weight for most riders |
| 30–35 mm | 2.4–2.6 in | Aggressive trail, enduro, rough descending | Better sidewall support, calmer cornering, a little more weight |
| 35–40 mm | 2.6–2.8+ in | Plus-size and very wide tyre setups | Only makes sense when the frame, fork, and tyre approval all line up |
These are practical starting points, not rigid laws. If the casing is very soft, or if you run lower pressure than average, I lean a little wider for support. If the bike is meant to be quick and efficient, I stay on the narrower side so the tyre keeps some shape and responsiveness.
What different riding styles usually call for
For XC, I want the bike to accelerate cleanly and hold a precise line, so I usually see the best result in the 25–30 mm internal range with 2.2–2.35 tyres. That keeps the system light and lively without making the tyre feel nervous. On fast British race courses or hardpack trail centres, that is often the sweet spot.
For trail bikes, especially the kind that see wet roots, off-camber turns, and the odd rocky descent, I prefer a bit more support. Around 28–30 mm internal width is where a lot of one-wheelset-fits-most builds start to make sense. If the bike spends more time being pushed hard than being pedalled all day, 30–35 mm can be worth the extra grams.
For enduro, I am happier giving up some snap in exchange for a tyre that stays composed when the bike is loaded hard into turns or smashed through rough ground. That is where wider rims earn their keep. Plus-size and very wide builds are a separate category altogether, and I would only go there if the frame and fork were clearly designed for it.
Common mistakes that make a good setup feel wrong
The biggest mistake I see is judging a rim by its external width or by the marketing name instead of the actual internal measurement. A second one is buying width first and tyre second. That usually leads to a setup that looks modern but does not ride as well as a simpler combination would have done.
- Going too wide for a narrow tyre can make the profile too flat and the tyre feel harsh or less forgiving.
- Going too narrow for a wide tyre can leave the sidewalls under-supported and increase squirm in corners.
- Ignoring casing and pressure often leads people to solve the wrong problem with a wider rim.
- Skipping tubeless or hookless checks can create compatibility issues even when the width looks correct on paper.
My rule is simple: I only change rim width when I have a clear reason, such as wanting more cornering support, better pressure tolerance, or a better match for a new tyre size. Chasing width just because it is available is usually the expensive way to discover that the old setup was fine.
What I check before I buy a new rim
Before I spend money, I check four things in order: the tyre I actually plan to run, the frame and fork clearance, the wheel’s internal width, and whether the rim is tubeless-ready or hookless in a way that affects tyre choice. If I am unsure between two widths, I ask which one gives me the ride feel I want without pushing the tyre outside its comfortable range.- If I ride mostly XC, I favour the lighter, narrower option.
- If I ride rougher trail or enduro terrain, I favour more support and stability.
- If my current tyre already feels vague, I fix pressure and casing before I blame the rim.
- If the rim is hookless, I only use tyres that are approved for that setup.
For most riders, the best choice is not the widest rim available. It is the rim that matches the tyre, pressure, and terrain closely enough that the bike feels calm when it should and quick when it needs to be. That is the version of width that actually pays off on the trail.
