Tyre and rim fit looks simple until the wrong combination ruins a wheel build or leaves you guessing about pressure and handling. The meaning of ETRTO is straightforward: it is the common sizing standard that helps you match a bicycle tyre to the correct rim instead of relying on vague inch labels or marketing names. For MTB, gravel and mixed-surface bikes, that clarity saves time, money and a lot of avoidable fitment mistakes.
What the ETRTO code tells you at a glance
- ETRTO uses millimetres, so tyre and rim fit is much easier to verify than with old imperial labels.
- The last number is the bead seat diameter, and it must match the rim exactly.
- Common bike families you will see most often are 622 mm, 584 mm and 559 mm bead seat diameters.
- The printed width is nominal, so the real mounted width can change with rim width and pressure.
- Rim internal width, tubeless setup and pressure limits still matter after the diameter matches.
- On hookless rims, compatibility rules are stricter than on traditional hooked rims.
What the ETRTO standard actually is
ETRTO stands for the European Tyre and Rim Technical Organisation. Its job is to align tyre, rim and valve dimensions so they are interchangeable and fitted safely across the market. I treat it less like paperwork and more like a compatibility language that removes guesswork when I am choosing parts for a bike build.
The current cycle-tyre standards still use the same logic: a tyre is identified by its nominal width and its specified rim diameter, both expressed in millimetres. That is why the standard matters so much for modern bikes, where a single wheel size can appear under several different marketing names. Once you know what the standard is for, the next step is reading the code on the sidewall.
How to read a bicycle tyre code
An ETRTO marking such as 37-622 tells you two things: the tyre’s nominal width is 37 mm and its bead seat diameter is 622 mm. The first number is the width reference, while the second number is the part that must match the rim exactly. If that second number is wrong, the tyre is the wrong fit no matter how close the sidewall label looks in inches.

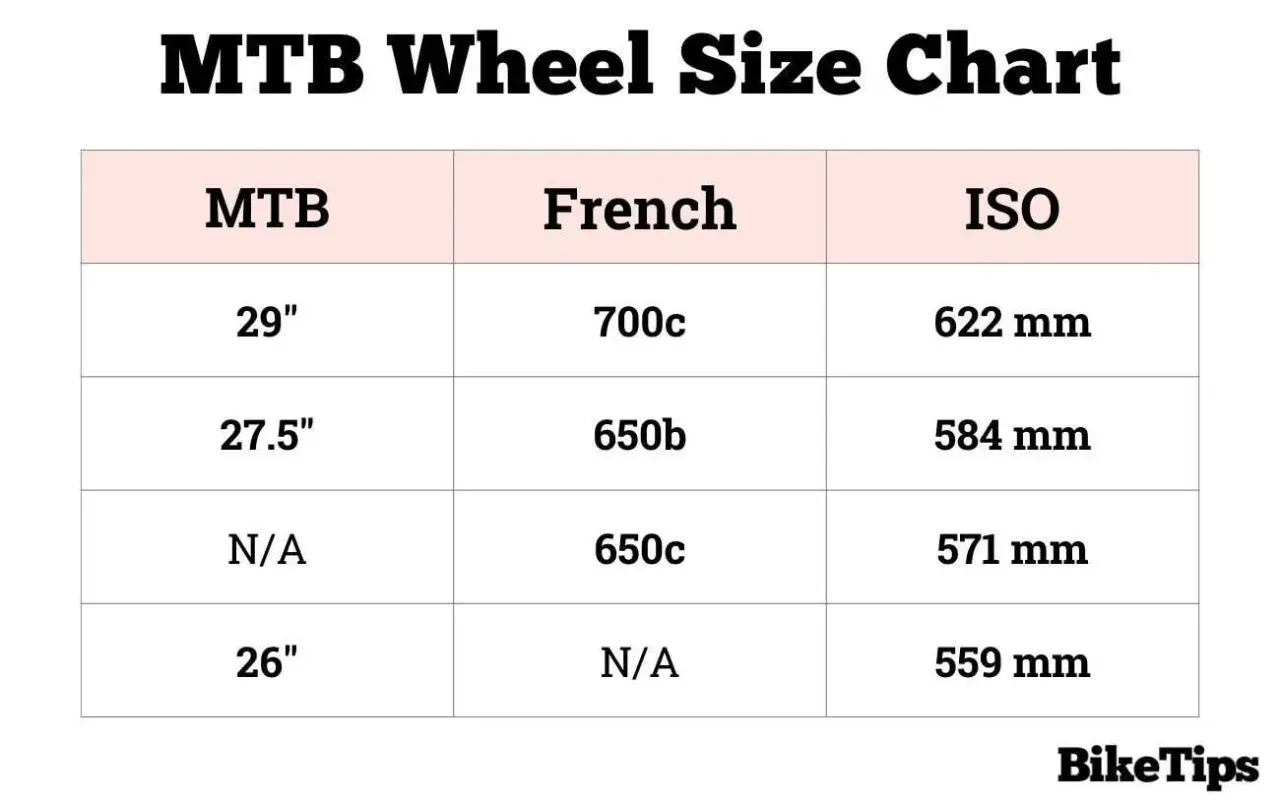

| Common label | ETRTO bead seat diameter | What it usually means |
|---|---|---|
| 29er / 700c | 622 mm | Shared rim family, different tyre widths and uses |
| 27.5 / 650B | 584 mm | Common on trail and gravel bikes |
| 26-inch MTB | 559 mm | Older mountain bike standard |
I like this format because it separates the part that can vary from the part that cannot. The width can move around slightly once mounted, especially as rim internal width changes, but the bead seat diameter is the hard rule. That leads straight into the bigger question: why the inch labels can still mislead riders.
Why the bead seat diameter matters more than the inch label
On a bike shop shelf, 29-inch, 700c and 27.5-inch are useful shorthand, but they are not precise enough for fitment decisions. Two tyres can share the same wheel family and still behave differently because of width, casing and rim shape, while two tyres sold under similar-sounding names may not belong on the same rim at all. I always check the ETRTO number first because it strips away that noise.
This is especially relevant in the UK, where riders often compare imperial and metric labels side by side on web shops. A 622 mm tyre fits a 622 mm rim, whether the sidewall says 700c or 29er, but a 584 mm tyre does not suddenly become a 622 mm tyre just because the marketing copy sounds close. The ETRTO system prevents that kind of expensive misunderstanding, and it also helps you spot which wheel upgrades are real upgrades rather than cosmetic re-labels. The next layer is rim width and pressure, which is where many good-looking setups still fail.
Rim width, casing and pressure are the real compatibility checks

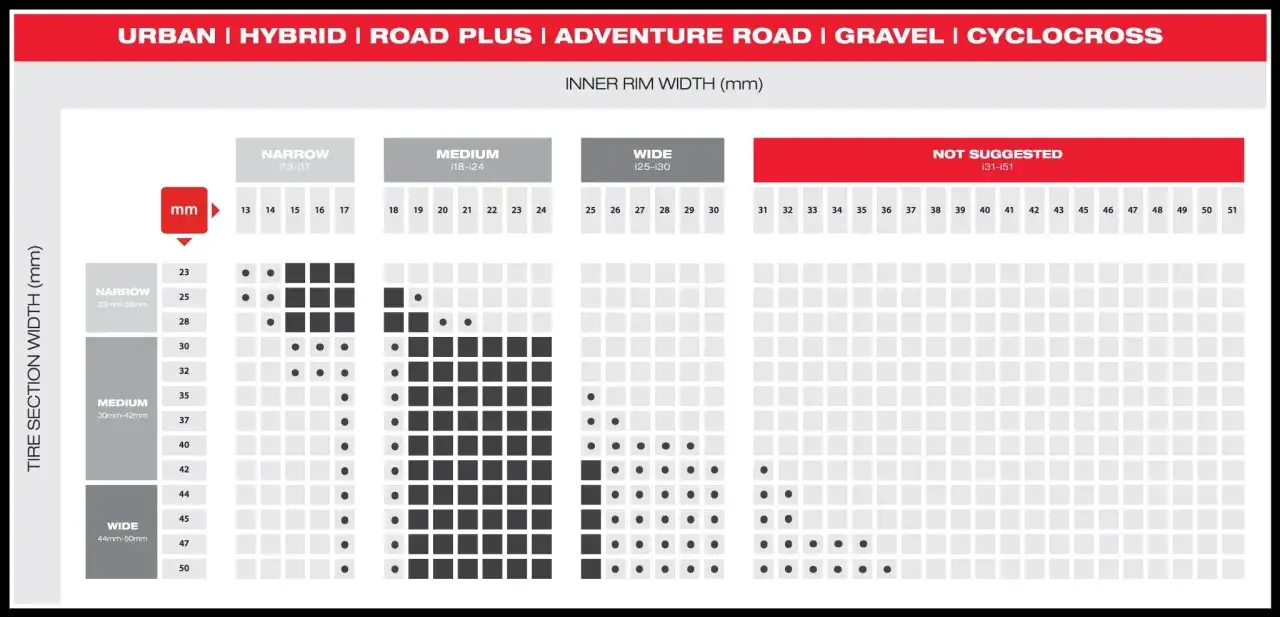

Matching the diameter is necessary, but it is not the whole story. The same tyre can sit wider or narrower depending on the rim’s internal width, and that changes the casing shape, cornering support and how much air volume you actually get. ETRTO gives the dimension language, but I still rely on the rim maker’s tyre-width chart and the tyre maker’s pressure limits before I call a setup correct.
| What I check | Why it matters | Typical consequence if ignored |
|---|---|---|
| Inner rim width | Shapes the tyre and support | Loose handling or poor casing support |
| Tyre and rim pressure limits | Protects bead and rim | Unsafe pressure or premature wear |
| Frame and fork clearance | Leaves space for flex and mud | Rubbing, noise and damage |
| Load and riding use | Matches XC, trail or e-bike demands | Instability or fast wear |
On a hardtail or full-suspension trail bike, that last point matters more than many riders think, because aggressive cornering and rough ground put a tyre under real side load. Once the fit is structurally correct, tubeless and hookless rules become the final filter.
Tubeless and hookless make the standard even stricter
ETRTO’s bicycle recommendations are clear that tubeless tyres belong on airtight rims, or on adapted rims with proper airtight tape. A tubeless-ready tyre is not fully airtight by itself; it seals when the bead, rim and sealant work together. I never assume a tyre is tubeless-compatible just because it says “tubeless” on the box, because the wheel interface still has to be correct.
Hookless or straight-side rims are stricter again. The tyre and rim must both be approved for that rim type, and some systems only accept specific tubeless-ready constructions. For a trail bike or gravel bike, I treat the wheel manufacturer’s compatibility table as a hard rule, not a recommendation. That naturally leads to a simple buying process, which is the part most riders actually need.
A buying checklist that avoids most fitment mistakes
When I am matching parts for a bike, I work through the decision in the same order every time. It is faster than browsing by brand name, and it cuts down on returns.
- Read the sidewall code first. Note the width and the bead seat diameter.
- Match the bead seat diameter to the rim. This is the non-negotiable fit rule.
- Check the rim’s internal width. Use the wheel maker’s compatibility chart, especially for wide MTB and gravel tyres.
- Confirm the rim type. Tube type, tubeless-ready, airtight tubeless, hookless and hooked rims are not interchangeable by assumption.
- Check pressure, load and clearance. Make room for mud, flex and the way your actual riding loads the tyre.
If you prefer shorthand, this is the rule I use: match the ETRTO number first, then verify the rim chart, then check the bike frame. A good-looking tyre choice that fails those three checks is still the wrong choice, and that brings me to the mistakes I see most often on off-road bikes.
The mistakes I see most often on MTB and gravel bikes
Most bad fitment decisions are boring, which is exactly why they happen. They start with a label that looks close enough and end with a ride that feels vague, noisy or unsafe.
- Buying by width alone. A 2.4-inch tyre can still be the wrong diameter for your rim family.
- Assuming 29er and 700c are always interchangeable. They often share 622 mm BSD, but the width and intended use still matter.
- Ignoring rim internal width. A tyre can look fine on paper and feel awkward once mounted on a rim that is too narrow or too wide.
- Mixing tubeless and hookless rules. A tyre that works on one rim type may not be approved on another.
- Forgetting real-world clearance. Mud, wheel flex and sidewall growth can turn a “fits” into a rub on the first wet ride.
These are not edge cases. They are the problems that show up when someone trusts the marketing name and skips the metric code, which is why I always finish with one final check before ordering.
The small code on the sidewall saves the biggest mistakes
For me, the practical value of ETRTO is simple: it turns tyre choice from a guess into a checkable fitment. If the bead seat diameter matches, the rim width is approved, and the pressure and rim-type rules line up, you are working from solid ground instead of hope. That is exactly the kind of discipline that keeps a trail bike reliable when the terrain gets rough and the weather gets ugly.
If you remember only one thing, make it this: read the ETRTO number before you read the marketing name. The label on the box can be vague, but the metric code tells you whether the setup is genuinely right for the rim, the ride and the bike you actually own.
