The right chainring torque matters more than most riders think: too loose and the bolts work themselves free, too tight and you can strip the hardware or distort the interface. In this guide, I break down the real SRAM numbers, the difference between current and older crank layouts, and the practical checks that keep a drivetrain quiet on the trail.
The key numbers to know before you reach for the torque wrench
- 4 N·m is the value SRAM uses on many current chainring and spider mounting systems, including several 8-bolt and 4-bolt setups.
- 9 N·m still applies to several direct-mount and older MTB chainring layouts, so the exact crank model matters.
- The crank arm fixing bolt is a different fastener entirely; do not confuse it with the chainring bolts.
- If bolts were removed, SRAM’s manuals call for fresh medium-strength threadlocker on the reassembly side of the job.

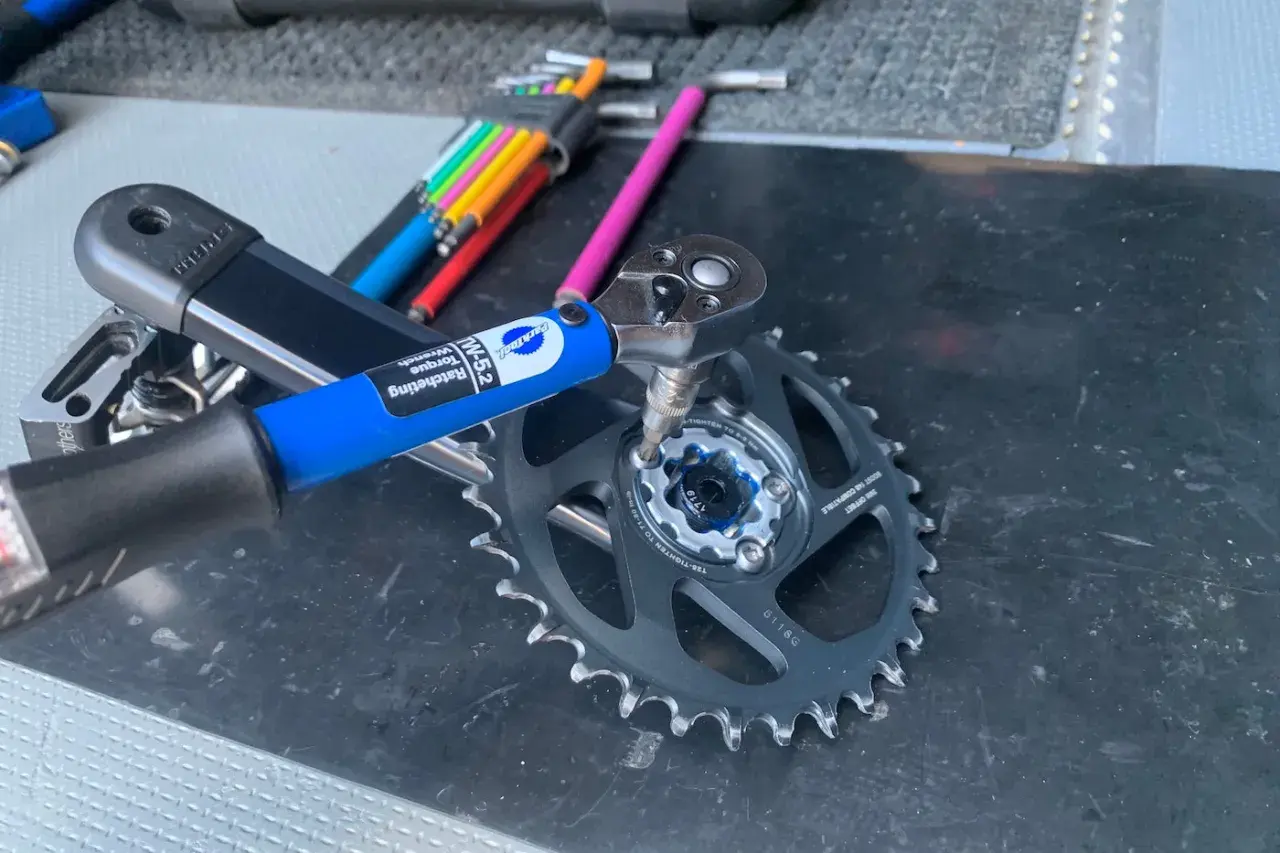

- Use the correct Torx bit, tighten in an alternating sequence, and stop the moment the wrench clicks.
The torque value depends on the crank interface
The short answer on sram chainring bolt torque is that there is not one universal number. In SRAM’s current service literature, many chainring and spider assemblies are tightened to 4 N·m, while several direct-mount or older multi-bolt chainring layouts are specified at 9 N·m. The interface decides the torque, not the logo on the crank arm.
That is why I never treat “SRAM chainring bolts” as one single category. A road AXS 4-bolt chainring, an 8-bolt spider, and a 3-bolt direct-mount MTB ring are not the same job, even if they all live somewhere in the drivetrain. If you want the safe answer, start with the exact model and the service chart for that crankset.
| SRAM setup | Typical torque | What it means in practice |
|---|---|---|
| 8-bolt chainring or spider assembly | 4 N·m | Use an alternating tightening pattern and a correctly seated Torx bit. |
| Current 4-bolt road chainring setups | 4 N·m | Light fasteners, low torque, and even seating matter more than brute force. |
| 3-bolt direct-mount standard or oval chainrings | 9 N·m | These need noticeably more clamp load than the lighter spider-style systems. |
| 4- and 5-bolt MTB chainrings on older or legacy hardware | 9 N·m | Follow the specific chainring chart rather than guessing from the bolt count alone. |
That table is the part I would keep in mind before touching anything else. Once you know the interface, the next mistake to avoid is mixing up chainring bolts with the much larger crank arm bolt.
Do not confuse chainring bolts with the crank arm bolt
This is the error I see most often when a drivetrain starts to creak. The chainring bolts hold the ring or spider to the crank arm assembly, while the crank arm fixing bolt clamps the arm to the spindle. They are not interchangeable, and they do not share the same torque target.
On many SRAM road cranksets, the crank arm bolt is far tighter than the chainring hardware. For example, current road manuals commonly call for 54 N·m on the crank arm bolt. That is a completely different job from a 4 N·m or 9 N·m chainring bolt, and using the wrong figure can cause real damage fast.
- If you are looking at the small Torx fasteners around the chainring, you are in chainring-bolt territory.
- If you are looking at the large fixing bolt that secures the arm to the spindle, you are in crank-arm territory.
- If you are unsure which is which, stop and identify the crank model first.
Getting that distinction right is what keeps the rest of the job clean, because the tightening method is only useful if you are applying it to the correct fastener.
How I tighten SRAM chainring hardware without chasing creaks later
When I install or re-fit a chainring, I try to make the joint seat evenly the first time. That matters more than people think, because a bolt that reaches torque while the ring is still sitting slightly crooked tends to loosen, creak, or fret later.
- Clean the bolt heads, threads, and contact faces before assembly.
- Check whether the bolts were factory-treated with threadlocker and whether they need fresh medium-strength threadlocker if they were removed.
- Start every bolt by hand before reaching for a tool.
- Tighten in an alternating or cross pattern so the ring seats flat against the spider or crank interface.
- Use the correct Torx size for that crankset, usually T20 or T25 depending on the model.
- Bring each fastener up to the published torque with a calibrated torque wrench, not by feel.
SRAM’s manuals also stress that the bolts should be checked regularly and never ridden loose. I agree with that fully: a small amount of prevention here saves much more time than trying to diagnose a noisy drivetrain after the fact. The next question, though, is what actually happens when the torque is wrong.
What the wrong torque feels like on the trail
A chainring bolt problem rarely announces itself in a dramatic way. More often it starts with a faint tick under hard pedalling, a metallic click when you load the drivetrain out of the saddle, or a tiny amount of movement that you only notice when you grab the chainring by hand.
When the bolts are too loose
Loose bolts let the ring move microscopically against the interface. That movement causes fretting marks, creaks, and eventually backing-out. In the worst case, the ring or spider can shift enough to make the drivetrain feel vague under load.
Read Also: SRAM vs Shimano MTB Drivetrain - Which Is Right For You?
When the bolts are too tight
Over-tightening can strip Torx heads, damage the threads, crush washers or nuts, and distort the mounting surface. It can also create a mystery creak that looks like a bottom bracket problem even though the real issue is the chainring joint.
That is why I treat torque as a specification, not a suggestion. Once the symptom is obvious, the repair is usually simple, but it is slower than setting it correctly from the start. From there, the real trick is knowing which SRAM layouts still want 9 N·m and which ones stop at 4 N·m.
Where SRAM still uses 9 N·m and where 4 N·m is enough
The safest way to think about SRAM chainring hardware is to separate it into two camps. One camp uses lighter spider or direct-mount hardware and commonly lands at 4 N·m. The other camp uses more traditional direct-mount or multi-bolt MTB chainring hardware and often wants 9 N·m.
| Hardware style | Torque | Why the number changes |
|---|---|---|
| 8-bolt spider or chainring interface | 4 N·m | Even clamping across multiple fasteners is the priority. |
| Current road 4-bolt chainring setups | 4 N·m | These are designed around lighter fasteners and precise seating. |
| 3-bolt direct-mount standard or oval chainrings | 9 N·m | The interface carries more load, so the clamp force is higher. |
| Older 4- and 5-bolt MTB chainrings | 9 N·m | Legacy systems often rely on a stronger threaded joint. |
My rule is simple: if the crankset or chainring chart says 9 N·m, I use 9 N·m; if it says 4 N·m, I do not “help it along” with more force. The difference between those numbers is small on paper, but it is large enough to matter in the workshop and on the trail.
The checks I would make before the bike goes back on the trail
Before I call the job done, I do one last pass for the things that usually cause trouble later. The bolts should be fully seated, the ring should sit flat, and nothing should look galled, twisted, or dry where it should not be.
- Verify the exact crank model and torque value one more time.
- Check that every fastener is seated evenly, especially after the first tightening pass.
- Inspect the bolt heads for rounding before they become a removal problem.
- Recheck the bolts after the first ride, especially on high-load or muddy bikes.
- Use fresh medium-strength threadlocker if the manual calls for it and the bolts were removed.
If you remember only one thing, make it this: the correct torque is whatever SRAM specifies for that exact chainring interface, not whatever feels “right” in the hand. Get the model right, use the right number, and the drivetrain usually stays quiet, secure, and easy to live with.
